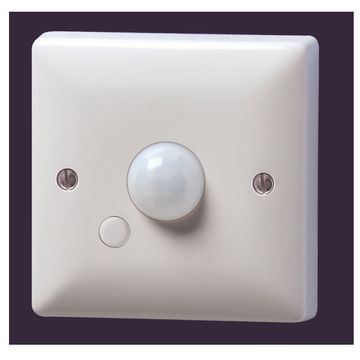

Danlers Reliable Occupancy Switch for Efficient Energy Management.
Product Code: 133WAPIR1
Manufacturer’s code: WAPIR
- A Manual Override Off Switch On The Front Of The Plate
- Fits Into A Plaster Depth Wall Box
- Requires A Permanent Live Supply
- For Wall Mounting Only
Sign in or register to see prices
Stock available contact your local branch
Specifications
Wall or ceiling mounted passive infra-red occupancy switch with built-in adjustable time lag and adjustable photocell override. Includes a manual override off button. Requires 2 wire connections with no neutral wire needed. Features a detection range of 5m with a 120-degree angle and can handle loads up to 6 As (1500W) of fluorescent loads and up to 2 As (500W) of LED. Designed to fit into a 16mm deep wall box. Minimum load requirement is 20W.
| MPN | WAPIR |
| Web Category | Indoor Surface Sensors |
| Manufacture | Danlers |
| Type | PIR Sensor |
| Dimensions - Length | 86mm |
| Dimensions - Overall Length | 22mm |
| General - Material | Mixed |
| Features - Colour | White |
| Sales Unit | EA |
| Technical Data - Voltage Rating | 230v |
| Mounting | Surface |
| Features - Time Lag Range | 10sec to 40min in 9 Step |
| Features - Extra Information | In Stock |
| General - Warranty | 5 Years |
| General - CE Approved | Yes |
| Features - Wiring Method | Screwed Terminals |
| Material & Finish - Housing Material | Polycarbonate |
| Features - Fixings Included | No |
| Features - Knockouts Included? | No |
| google_condition | new |
| General - Luckins Trade Price | 63.89 |
